Make A Hydrogen Generator

If you don't see what you need to make a hydrogen generator, we may be able to get it for you, or know of a good place to send you so feel free to contact us.

We carry an array of DIY hydrogen parts that you may be looking for. Whether you are building your own HHO generator or want to add to your existing hydrogen system.

DIY Hydrogen Bubblers And Dryers	HHO PWM	Hydrogen Cells
HHO Chip	MAP Sensor Enhancers	EFIE
316l Stainless Steel Fasteners	Check Valves	Hydrogen Kit
Relay and Relay Harness	Inline Fuse Holders	316l Stainless Steel Wire
DIY MAP Sensor Enhancer Kits	Electrode Towers	Float Switch
Reservoir Tanks	Viton O-Rings

Click Here To Ask Your HHO Gas Question And See What Others Have Asked

316 Stainless Steel Fasteners

When you make a hydrogen generator, you will definitely need 316 stainless steel fasteners.

You want stainless steel that is the least corrosive for your hydrogen generator. 316 cost about 35% more than 304 stainless steel, but there is a huge difference. 304 contains 18% chromium and 8% nickel.

316 contains 16% chromium, 10% nickel and 2% molybdenum. The "moly" is added to help resist corrosion.

316 should be stamped on the fastener.

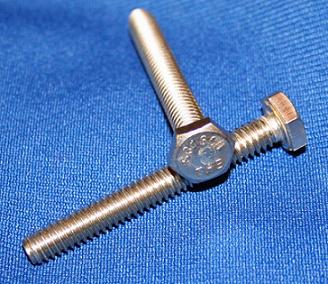

316 SS Tap Bolts Fully Threaded	1/4" Set Of 2	3/4" Set Of 2
	1/4 x 20 x 2	3/8 x 16 x 2
	$3.95	$8.95

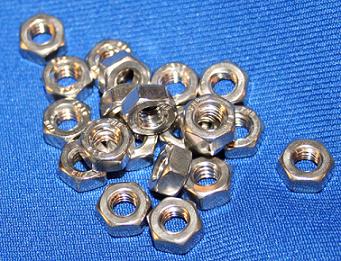

316 SS Finished Hex Nuts	1/4" Set Of 4	3/4" Set Of 4
	1/4 x 20 x 3/8	3/8 - 16
	$1.99	$2.59

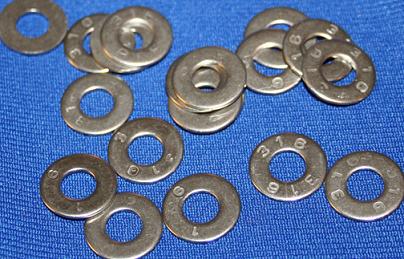

316 SS Flat Washers	1/4" Set Of 4	3/4" Set Of 4
	1/4 x 5/8	3/8 x 7/8
	$1.25	$1.95

The Difference between 316 and 316L is the amount of carbon. 316 has .08 and 316L has .03 carbon content. The primary reason for using an L grade of 316 stainless steel is that it will reduce the tendency of the material to crack after welding. Other than that the resistance to corrosion it seems to have no difference.

Viton O-Rings

Quality Viton O-Rings are resistant to chemicals for your hydrogen generator system. These will give you a good leak proof seal when you make a hydrogen generator.

Available in 2 sizes to accompany either the 1/4" or 3/4" 316 Stainless Steel Fasteners

Viton O-Rings	1/4" Set Of 2	3/4" Set Of 2
	$1.45	$1.45

Allows fluid or gas to flow through in only one direction. They can have multiple uses when you make a hydrogen generator system.

Check Valve	For 1/4" ID Hose	For 3/8" ID Hose
	$2.99	$4.75

• Polypropylene And Kynar Housing With Viton diaphragm
• Will Work With Vacuum Between 2 and 29 in. Hg. And Pressure From 1 psi to 150 psi.
• Will Withstand Chemicals

$7.95

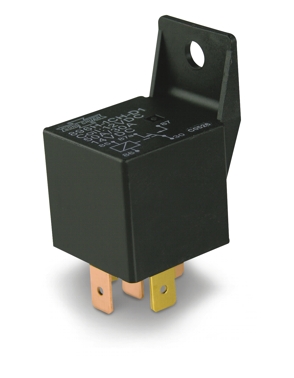

• 30/50 Five Pin Terminal Relay
• Capable Of Switching Up To 40 amps
• Normally Closed Terminals Can Switch To 30 amps
• 12 Volt Coil
• Normally Closed Terminals Can Switch To 30 amps

$4.95

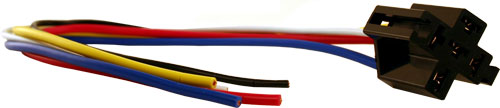

• 5 Pin
• 14 Gauge Wire
• 11" Leads

Inline Fuse Holders, Relays and Relay Harnesses

Mini InLine Fuse	ATC Inline Fuse
$4.99	$4.99
12 gauge	10 gauge
4 " Leads	Loop Lead
waterproof Fuse Holder	waterproof Fuse Holder
For Use With Mini Fuses	For Use With ATC Fuses

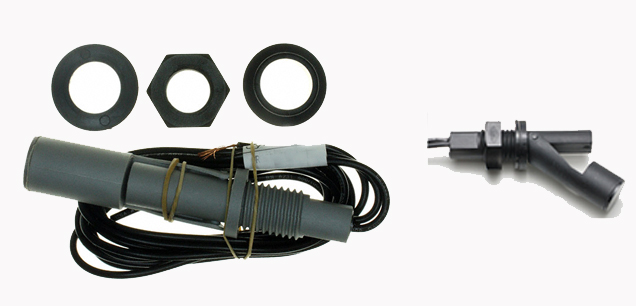

Whether you call them a float switch, float level switch, liquid level sensor, water level sensor or pump switch.

Grommet Style Side Entry Water Level Sensor

This grommet style pump switch is made for hho reservoir tanks it is not made for hydrogen cooling tanks that also act as a hho reservoirs, cooling tanks get too hot and this sensor may eventually stop working.

No tapping is needed just drill your 13/16" hole.

Makes a leak-proof seal. Can be used on material thickness from 1/8" to 3/8".

			$14.95

Annealed 316l Stainless Steel Wire 20 AWG

$9.95 Per 20 Feet

When you make a hydrogen generator with electrode towers you definitely want the annealed 316l wire. If it isn't annealed it will be too hard to bend and work with.

Building your own hydrogen generator with electrode towers is a simple and inexpensive solution to save at the pump. By supplementing your vehicles fuel consumption, you can save hundreds and it will pay for itself in no time at all. The average cost to build a complete kit can run under $100

Hydrogen Water Cars designed and developed the first custom pre-drilled plexiglass towers on the market and we are proud to offer two different quality built hydrogen towers, The Double Punch and the Water Filter.

Our towers are reliable, low maintenance, draw low amps and do not produce a lot of heat.

• Pre-Assembled
• Cut To precision, Drilled And Sanded
• 1/4" Thick
• 20 gauge 316L Annealed Stainless Steel Wire
• Wires Will Not Touch, No Need To Worry About It Shorting Out.
• Cost Effective Solution For Those Wanting Multi-Cells With Limited Room Under The Hood
• 4 Strands Are Anode - 4 Strands Are Cathode (negative)

$34.95

5 1/2" Long and 2 3/4" Wide

These were built to go in a 1 quart mason jar.

Over 34 Feet Of 316l Stainless Steel Wire

$49.95

8" Long and 2 3/4" Wide

These were built to go in water filter housings or ?

Over 44 Feet Of 316l Stainless Steel Wire

Hydrogen Reservoir Tanks

Adding a hydrogen reservoir tank when you make a hydrogen generator system means you won't have to fill your generator up as often, cutting down on the maintenance.

Some are adding float switches to monitor the water level from inside the vehicle, with an LED light. Like we do on our Hydrogen Generator Diesel Kit. These tanks are very stout, thick enough to drill a hole through.

$28.95

• 1/4" Barbed Fitting Melt Welded To The Bottom (adapter can be used for different size hoses)
• Comes With 2 1/4" Vented Threaded Cap
• Very Resilient High Density Polyethylene Tanks
• Blow Molded With A Seamless Wall Construction Which Gives The User The High Quality And Low Maintenance In Fluid Handling Applications
• Chemical Resistant For Any Catalyst
• Each Tank Is Tested For Leaks
• Built In Mounting Tabs With Holes Makes Installation Easy

6 Quart	2.5 Gallon	4 Gallon
