The Nebulyzer
Hydrogen Car Kit

Efficient - Compact - Economical

Made of durable ABS plastic this HHO Generator is another very efficient 6 cell designed after one of Bob Boyces generators. With this generator you can achieve 1-3 LPM.

If you live in colder climates or want to run this generator with the higher amount of catalyst to achieve close to or 3 LPM, please see the bottom of this page about adding a PWM.

Hydrogen kits come with easy to read instructions and colorful diagrams, and of course we are here to offer you technical support by email or phone if needed.

The hydrogen car kit comes with a 2 quart reservoir tank and a custom made hydrogen bubbler with that passes through filter material and over 8" of water. To learn more about hydrogen bubblers and their importance, please go to our DIY hydrogen bubbler page where we discuss this in further detail.

The Nebulyzer Hydrogen Generator Is Available 4 Different Ways

Nebulyzer Full Enhancement Kit	Nebulyzer Basic Kit	Nebulyzer Cell	Nebulyzer DIY Cell

Easily fits in most vehicles where real estate under the hood is minimal. Can also usually be mounted in between your grill and radiator.

Also available is The Nebulyzer bracket, depending on where you decide to place your generator, this will help secure it in place.

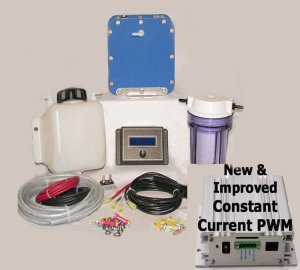

The Nebulyzer Full Enhancement Kit

This kit has everything as shown below in the basic kit, with the addition of the Dual Edge MAP (or MAF) Sensor Enhancer and an EFIE.

If your vehicle is fuel injected and has a computer you will need enhancement to address your MAP and or MAF sensor and o2 sensors. Please see Tuning In Your Vehicle For A Hydrogen Car Conversion to understand this better.

Also you will receive 40' of colored coordinating electrical wire, for installing your MAP Sensor Enhancer in the cab of your vehicle (not shown in pictures).

The Nebulyzer Hydrogen Generator Basic Kit

The Nebulyzer Cell	Blk Automotive Wire = 10 feet
Installation Instructions	Red Automotive Wire = 10 feet
2 Quart Reservoir Tank	Fuel Hose 3/8" - 10 feet
Large Bubbler	20 - Hose Clamps
Inline Fuse Holder With Fuse	Relay
Butt Connectors And Wire Rings	Relay Push on Pin Connectors
2 - Check Valves	Barbed Elbow For Air Intake
Wire Loom = 5 feet	Cable Ties

The Nebulyzer Hydrogen Car Kit is great for most diesel engines and older vehicles that have a carburetor (no computer).

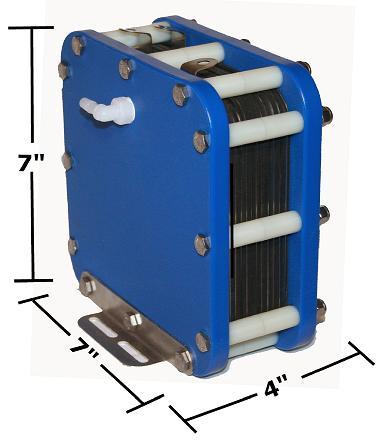

The Nebulyzer Hydrogen Cell

You may want a second cell to double your HHO gas output. Or maybe you are replacing a hydrogen generator, and don't need everything this hydrogn car kit has to offer.

For large engines we suggest the Revolution Kit. But, if you simply do not have the room under your hood, installing 2 Nebulyzer HHO cells with a PWM is definitely the way to go and you will give you LOTS of HHO gas.

The Nebulyzer DIY Hydrogen Cell

For the DIY'ers we also carry various hydrogen parts here on our DIY Make A Hydrogen Generator page, you may find helpful.

The Nebulyzer Hydrogen Car Kit Mounting Bracket

The Nebulyzer bracket is made of steel and nicely painted with a black powdered coating. Has a 1" Velcro strap that locks the generator down snuggly.

The holes which are also on the bottom of the bracket are made to match evenly with metal plumbers straps, if you need to also use straps to help mount your generator. The bracket makes putting in and getting out your unit easy and quick.

When deciding on where to mount any hydrogen generator, you should always find a position that is away from extreme heat.

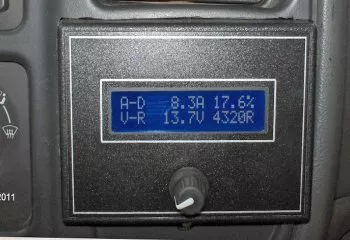

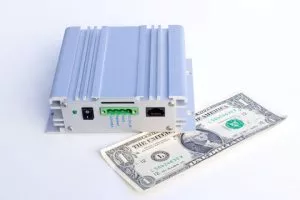

PWM stands for Pulse Width Modulator

This robust PWM is a current limiting, it can easily be mounted in small areas. Has an extra large heat sink and an external cooling fan.

Not a cheap china model.

It is preset at 12 amps but is adjustable to 30 amps.

When you add a pulse width modulator to your hydrogen system you can govern the amount of amp draw.

A PWM will also help to achieve "Ortho" hydrogen.
